Dimensions(mm)

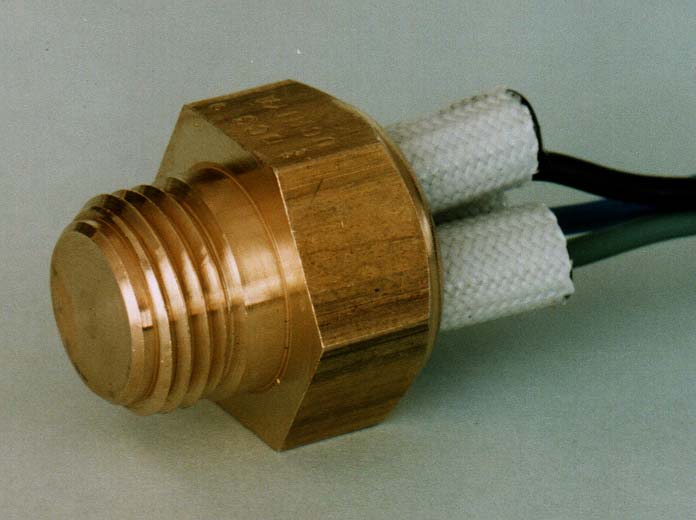

DUAL TEMPERATURE
THERMOSWITCH



Features

1. Dual contact and snap action

bimetallic element

2. Waterproof with O-ring use

and filling with epoxy resin



Applications

Dual temp radiator fan control

Temperature measuring device

Specifications
1. Electrical ratings 13V DC, 50mA (17A), 200,000 (100,000)
cycles res.(motor load)
2. Ambient conditions for use -40 to 150C
3. Operating temp -10 to 120C
4. Temperature tolerances +/-3C, +/-5C
5. Contact system Normally open or normally closed
6. Dielectric strength 1300VAC/1min

Variations

Screw size, Connector type, Harness length

Please contact us for further information.









Revised on Jan. 7, 2002
