Dimensions(mm)

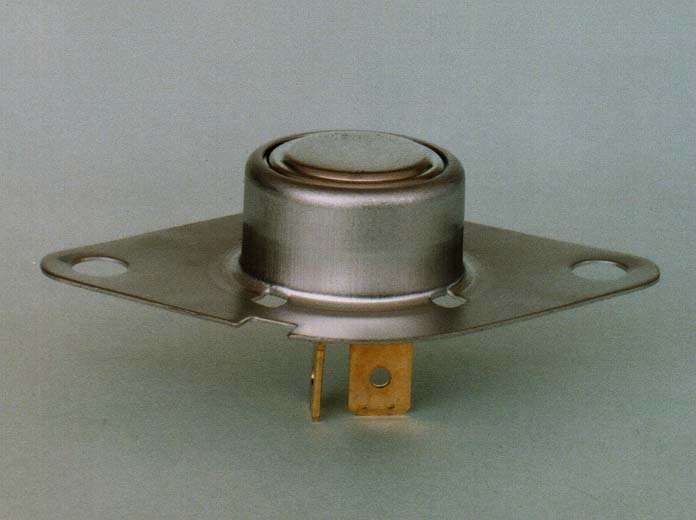

THERMOSWITCH



Features

1. Flange type

2. Snap action bimetallic element

3. Waterproof with O-ring use

and filling with epoxy resin




Applications

Ambient air temperature sensor

for car air conditioning system


Specifications
1. Electrical ratings 14V DC, 5A, 30,000 cycles res.
2. Ambient conditions for use -40 to 150C
3. Operating temp -10 to 120C
4. Temperature tolerances +/-1.5C, +/-3C
5. Contact system Normally open or normally closed
6. Dielectric strength 1300V AC/1min

Variations

Flange size, Hole pitch

Please contact us for further information.









Revised on Jan. 7, 2002
