Dimensions(mm)

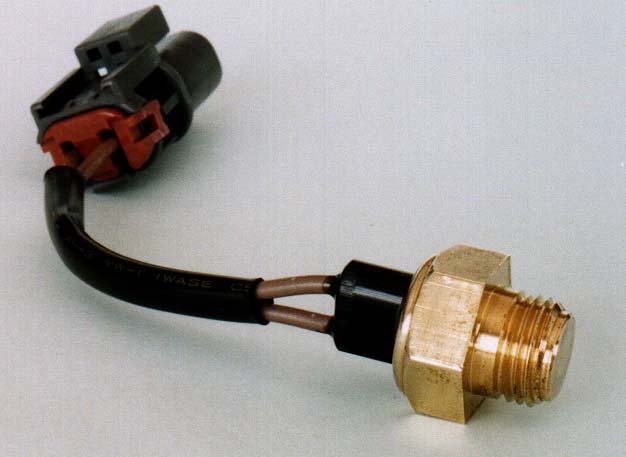

THERMOSWITCH




Features

1. Connector with harness

2. Snap action bimetallic element

3. Waterproof with O-ring use and

filling with epoxy resin




Applications

Radiator fan control

Temperature measuring devices

Specifications
1. Electrical ratings 13V DC, 50mA (17A), 200,000 (100,000) cycles res.(motor load)
2. Ambient conditions for use -40 to 150C
3. Operating temp -10 to 120C
4. Temperature tolerances +/-3C, +/-5C
5. Contact system Normally open or normally closed
6. Dielectric strength 1300V AC/1min



Variations

Screw size, Connector type, Harness length

Please contact us for further information.









Revised on Jan. 7, 2002
