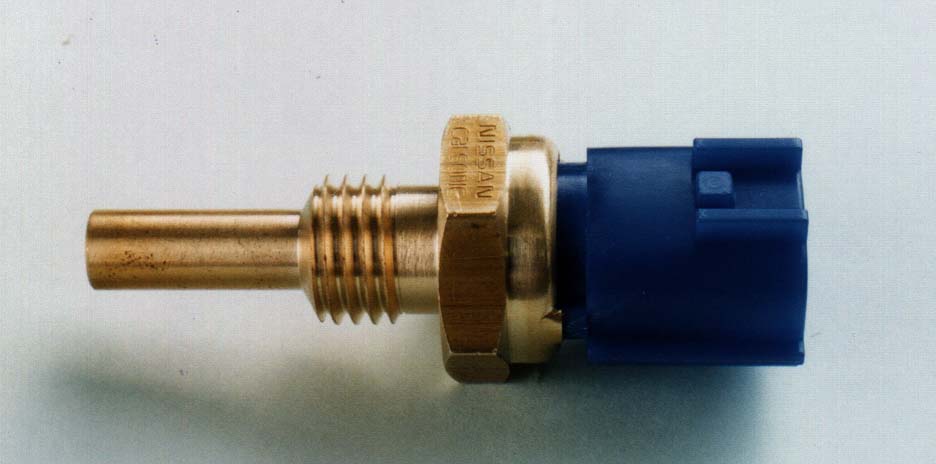

Dimensions(mm)	THERMISTOR SENSOR Features 1. Deterioration of resistance is minimized with glass-coated thermistor element use 2. Quick thermal response is attained due to silicon compound use 3. Waterproof with O-ring use Applications Cooling water temperature sensor Radiator fan control Engine oil temperature sensor
Specifications
1. Ambient conditions for use	-40 to 160C
2. Operating temp	-10 to 150C
3. Resistance	2.5k ohms (at 0C)
4. Tightening torque	24.5Nm
5. Dielectric strength	500VAC/1min

Variations

Thermistor resistance, Screw size, Connector type

Please contact us for further information.
