Dimensions(mm)

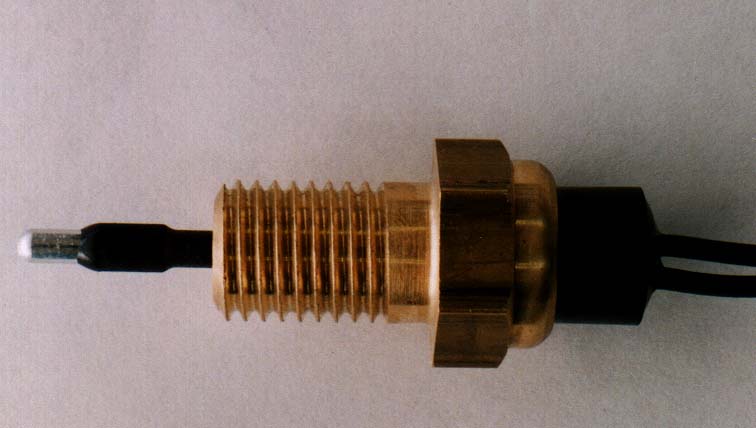

THERMISTOR SENSOR




Features

1. Deterioration of resistance is

minimized with glass-coated

thermistor element use

2. Quick thermal response is attained

due to the down size design


Applications

Engine room temperature sensor

Specifications
1. Ambient conditions for use -40 to 160C
2. Operating temp -10 to 150C
3. Resistance 18k ohms (at 90C)
4. Electrical ratings 0.25W (at 0C)
5. Dielectric strength 500VAC/1min

Variations

Screw size, Connector type, Harness length

Please contact us for further information.













Revised on Feb 6, 2002
