Dimensions(mm)

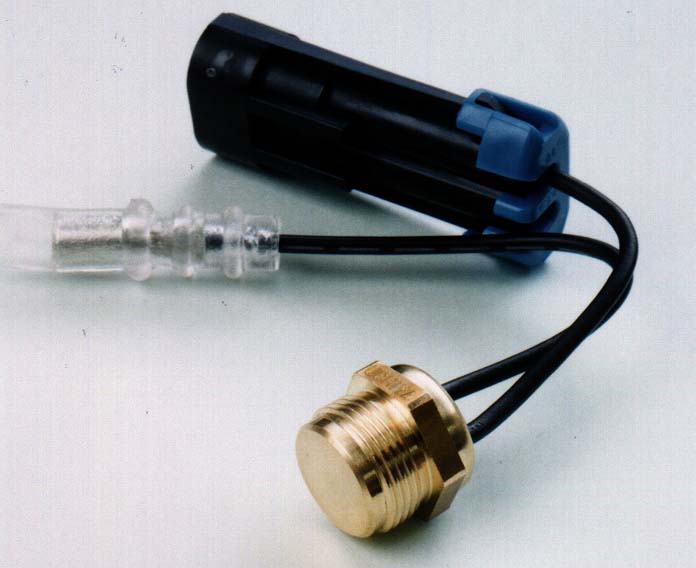

THERMOSWITCH




Features

1. Small size

2. Snap action bimetallic element

3. Waterproof with O-ring use and

filling with epoxy resin

4. Screw metal case


Applications

Compressor temperature sensor

for car air conditioning system;

Radiator fan control

Specifications
1. Electrical ratings 14V DC, 5A, 30,000 cycles (clutch load)
2. Ambient conditions for use -40 to 170C
3. Operating temp -10 to 160C
4. Temperature tolerances +/-5C
5. Contact systemNormally open or normally closed
6. Dielectric strength1300VAC/1min

Variations

Screw size, Connector type, Harness length

Please contact us for further information.






Revised on Jan 30, 2002
