Dimensions(mm)

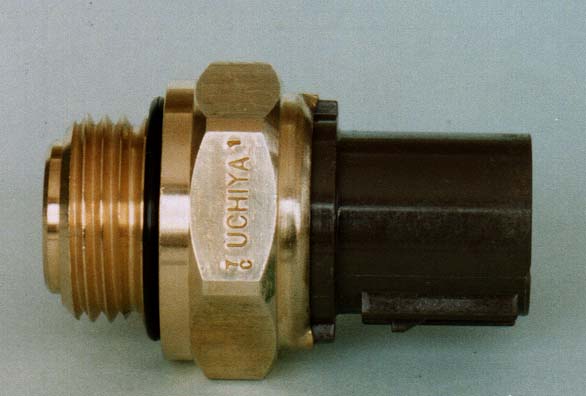

THERMOSWITCH


Features

1. Direct connector type

2. Snap action bimetallic element

3. Waterproof with O-ring use

and filling with epoxy resin




Applications

Radiator fan control

Temperature measuring device

Specifications
1. Electrical ratings 13V DC, 50mA (17A), 200,000 (100,000) cycles res.(motor load)
2. Ambient conditions for use -40 to 150C
3. Operating temp -10 to 120C
4. Temperature tolerances +/-3C, +/-5C
5. Contact system Normally open or normally closed
6. Dielectric strength 1500V AC/1min

Variations

Screw size, Connector type, Harness length

Please contact us for further information. @









Revised on Jan. 7, 2002
