Dimensions(mm)

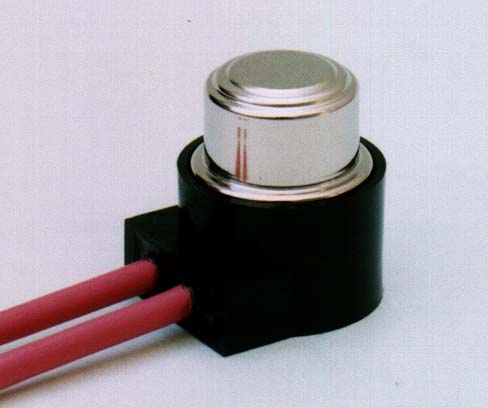

THERMOSWITCH

Features

1. Small size

2. Snap action bimetallic element

3. Waterproof with O-ring use and

filling with epoxy resin

4. Horizontal wire harness direction







Applications

Compressor temperature sensor

for car air conditioning system

Specifications
1. Electrical ratings 14V DC, 5A, 30,000 cycles (clutch load)
2. Ambient conditions for use -40 to 170C
3. Operating temp -10 to 160C
4. Temperature tolerances +/-5C
5. Contact systemNormally open or normally closed
6. Dielectric strength1300VAC/1min



Variations

Connector type, Harness length

Please contact us for further information.









Revised on Jan. 7, 2002
