Dimensions(mm)

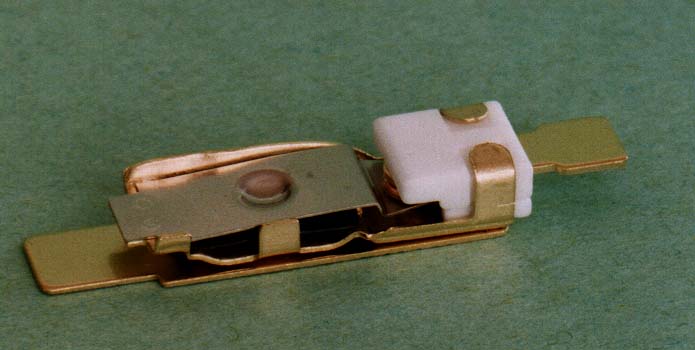

BREAKER





Features

1. Snap action bimetallic element

2. Wide range operating of the

motor lock current with parts

resistance change


Applications

Power window motor

Seat adjustment motor

Sliding sunroof motor...

Specifications
1. Electrical ratings 12VDC/4A to 60A, 24VDC/4A to 25A
2. Ambient conditions for use -40 to 150C
3. Operating temperature 70 to 140C
4. Temperature tolerances +/-10C
5. Contact system Normally closed
6. Dielectric strength 1300VAC/1min



Variations

Terminal shape, Dust proof

Please contact us for further information.







Revised on Jan.8,2002
