UCHIYA THERMOSTAT/BPC

Specifications				Dimensions		Applications
Operating Temp		60～100°C （5C step）				Lithium-ion Battery Pack
Tolerance		±5°C,±7°C,±10°C,				NiMH Battery Pack
Resetting Temp		46C or higher				NiCd Battery Pack
Maximum non-trip current
10A (Operating temp 75C Ambient 25C) 6A (Operating temp 80CΔT=15K) ΔT=Operating temp=Ambient temp


Maximum cut-out current		120A 12V DC

Safety Approval 　 *Contact us for approved conditions in detail.
Model	Agency	Standard	Category		Electrical Ratings		Max Temp	File No. .
BPC	UL	UL873	Regulating		6A/18V DC (resistive) 6000回		100C	E50124
	c-UL	CSA C22.2 No.24	Appliance Control		6A/18V DC (resistive) 6000回		100C	E50124
	EN(VDE)	EN60730-2-9	Thermal Cut-out		6A/18V DC (resistive) 6000回		100C	892100- 4510-0034
	CQC	GB14536.10	Thermostat (Non-fused bimetal type)		6A/18V DC (resistive)		100C	CQC11002059931 CQC11002059933

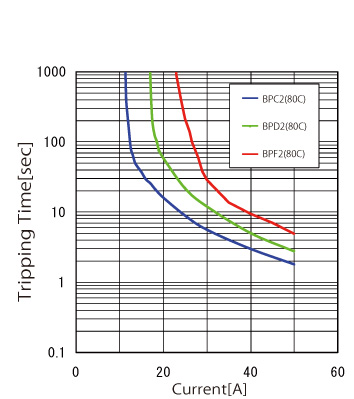

>>Tripping Time vs Current (at 25C)

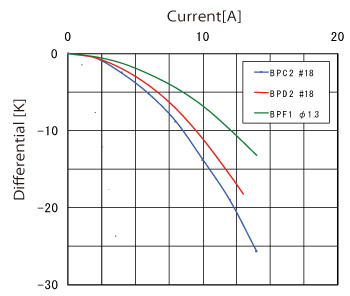

>>Operating Temp Drop due to Current


Back to "Products"(for Electrical Appliance)



	World's only "DUAL SPRING MECHANISM"
	Stronger Contact Pressure, Higher Vibration/ Impact Durability
