World's only "DUAL SPRING MECHANISM"
Stronger Contact Spring, Higher Vibration/ Impact Durability
Bigger Non-trip Current acceptable by changing inner live parts material
Suitable for quick charger battery pack
Overload, overheat protection for DC devices (Please refer to model JP series for AC devices)

Operating
Temp

Tolerance
Differential
Breaking capacity
13A 26V DC 6000 cycle (resistive)
Model
Agency
Standard
Category
Electrical Ratings
Max Temp
File No.

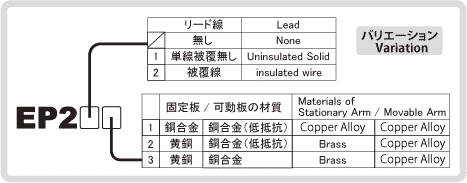

EP2
UL
UL 873
Regulating
13A/ 26V DC (resistive)
6000 cycles
130C
E50124
c-UL
CSA C22.2 No.24
Appliance Control
13A/ 26V DC (resistive)
6000 cycles
130C
E50124
EN(VDE)
EN IEC
60730-2-9
Thermal Cut-out
13A/ 26V DC (resistive)
10000 cycles
130C
40027970
CQC
GB14536.10
Thermostat
(Non-fused bimetal type)
13A/ 26V DC
130C
CQC10002050712
CQC10002050710

>>Tripping Time vs Current (at 25C) >>Operating Temp Drop due to Current

Mounting method
In case of sensing heat directly from the heat source, place the thermal protector to touch it’s opposite surface of “UCHIYA” printed surface to the heat source.
*In case of sensing convection heat or heat emission, please contact Uchiya.
The condition of sensing heat differ case by case.
Power tool
Battery Pack
Battery Charger
DC Small Motor
