Ultimate energy saving protector |
|

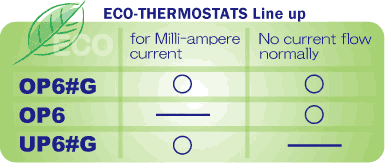

Same as Model OP6 except cross-bar contacts of PGS material(Platinum, Gold and Silver Alloy) |
|

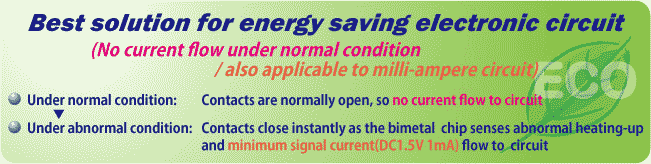

Normally open type (Contacts close when temperature rises) |
|
Long-term stability and reliability in contact resistance |
 |
|
 |
|
 |
|
Operating Temp |
 |
Tolerance |
 |
Differential |
 |
Breaking Capacity |
1A 125V AC 6000 cycle (resistive) 0.5A 250V AC 10000 cycle (resistive) |
 |
Overheat Protector |
Switching Power Supply |
UPS |
Inverter Ballast |
Motor Control Inverter |
Other electronic devices |
 |
||||||
Model |
Agency |
Standard |
Category |
Electrical Ratings |
Max Temp |
File No. |
OP61G OP62G |
UL |
UL873 |
Regulating |
1A/125V AC (resistive) 6000 cycles |
140 |
E50124 |
c-UL |
CSA C22.2 No.24 |
Appliance Control |
1A/125V AC (resistive) 6000 cycles |
140 |
E50124 |
|
EN(VDE) |
EN IEC 60730-2-9 |
Thermal Cut-out |
0.5A/250V AC (resistive) 10000 cycles |
150 |
40023061 |
|
CQC |
GB 14536.10 |
Thermostat (Non-fused bimetal type) (Normally Open) |
1A/125V, 0.5A/250V AC |
140 |
CQC04002009090 CQC03002008320 |
|
 |
  |
|||
| Mounting method |  |
|||
| In case of sensing heat directly from the heat source, place the thermal protector to touch itfs opposite surface of gUCHIYAh printed surface to the heat source. *In case of sensing convection heat or heat emission, please contact Uchiya. The condition of sensing heat differ case by case. |
||||
|
||||
 |
||||
